Install Guide - Oil Stop + Chemical Resistant + Clear Top Coat (201 / 2 / 15)

This guide provides field-proven steps for installing a system that uses Epoxy.com Product 201 Oil Stop Primer on oil-saturated concrete, followed by Product 2 chemical resistant epoxy, and finished with Product 15 clear top coat. Always read and follow the latest data sheets for each product.

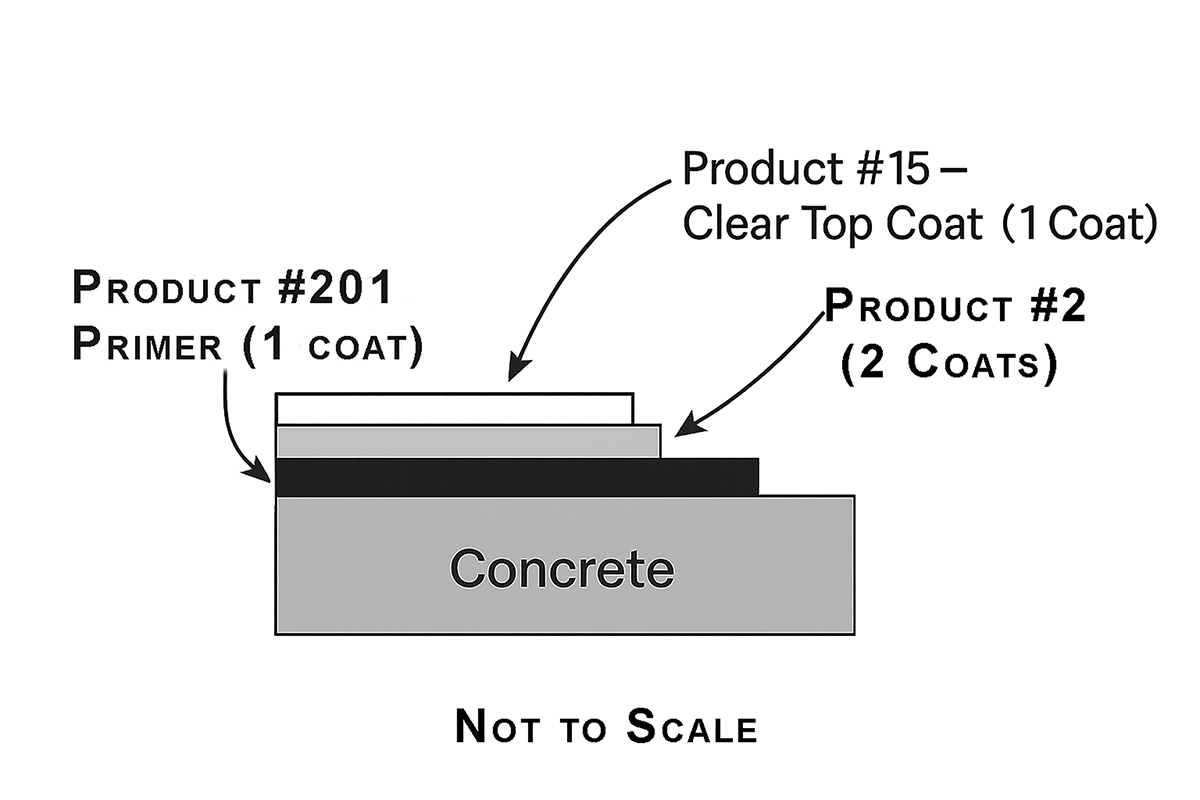

1 - System Overview

• Product 201 - Oil Stop Primer for oil contaminated or saturated concrete.
• Product 2 - Chemical resistant epoxy coating for industrial floors.
• Product 15 - Clear epoxy sealer / top coat for protection and gloss finish.

2 - Materials and Tools

• Materials: Products 201, 2, and 15; optional quartz aggregate if broadcasting.
• Mixing: low speed drill, mixing paddle, clean pails, calibrated measuring containers.
• Application: squeegee, notched trowel, rollers, spiked shoes, solvent for cleanup (MEK or acetone as allowed).
• Safety: gloves, eye protection, respirator, and proper ventilation per SDS.

3 - Surface Preparation

• Ensure concrete is clean, sound, and dry. Remove oil, grease, coatings, laitance, and dust.
• Shotblast or grind to the appropriate CSP profile.
• Oil-saturated slabs: degrease, rinse, and dry. Apply Product 201 to seal remaining oil.
• Concrete age: minimum 28 days or fully cured. Maintain substrate temperature above 55 deg F.

4 - Mixing Ratios (by volume)

• 201: 1 part A : 1 part B. Mix 3 minutes at low speed. Do not aerate.
• 2: 2 parts A : 1 part B. Mix 3 minutes at low speed.
• 15: 2 parts A : 1 part B. Mix 3 minutes at low speed. Components should be 65 deg F or above.

5 - Application Steps

Step 1 - Prime with Product 201 (Oil Stop Primer)

• Apply evenly to prepared, dry concrete. Work into the surface; avoid puddles.
• Allow to cure per Product 201 data sheet before applying subsequent layers.

Step 2 - Base Coat with Product 2

• Apply Product 2 at the specified spread rate for proper film build and coverage.
• For quartz systems, broadcast aggregate to rejection. After cure, sweep and vacuum excess quartz.
• Observe recoat window per Product 2 data sheet before sealing.

Step 3 - Clear Top Coat with Product 15

• Apply Product 15 as a clear sealer over the base coat or broadcast surface.
• Typical film thickness: 10–14 mil per coat. Apply one or more coats as required.
• Follow Product 15 recoat limits and curing schedule for optimal clarity.

6 - Curing and Return to Service

• At 77 deg F: walk-on after 24 hours; light traffic after 48 hours; full cure in 7 days.
• Lower temperatures extend cure times; higher temperatures shorten pot life.

7 - Limitations

• Do not thin with solvents.
• Maintain required ambient and substrate temperatures during application.
• Do not apply over active moisture or oil intrusion.

8 - Safety and Cleanup

• Use gloves, eye protection, and ventilation. Refer to product SDS for full safety data.
• Clean tools before gel using MEK or acetone per local regulations.

References

• Product 201 - Epoxy Oil Stop Primer
• Product 2 - Chemical Resistant Epoxy
• Product 15 - Clear Epoxy Sealer / Top Coat
• Surface Preparation Guide

Note: This installation guide is a convenience summary. Always follow the most current Epoxy.com product data sheets and technical bulletins for exact mix ratios, coverage rates, and cure schedules.

Proper mixing and installation is critical to the optimal success of all products.  See Installation Tips, Techdata, & MSDS for more details on our products.  Be sure to contact us with any questions and/or concerns that you have.
